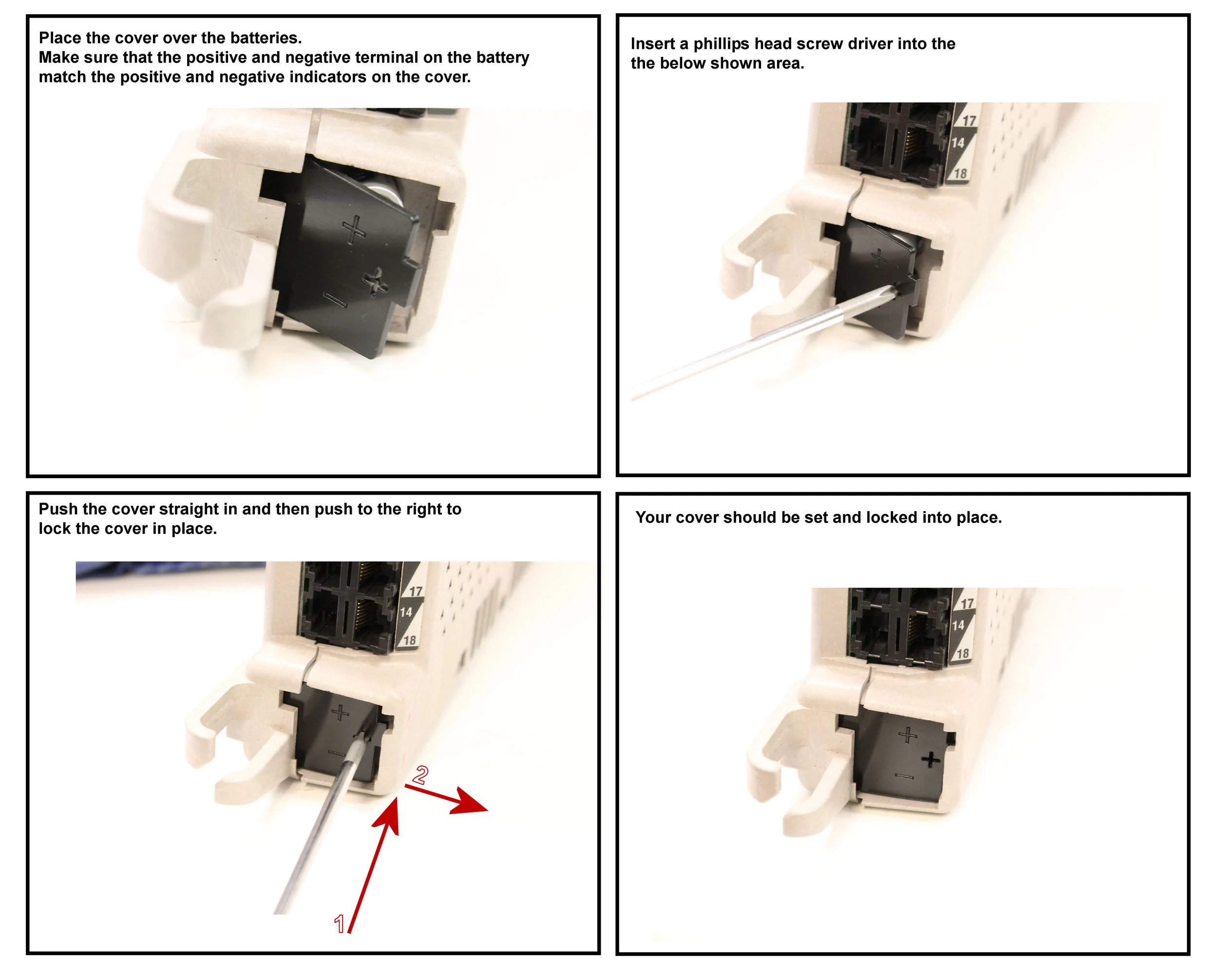

How tO iNSTALL oUR uNIQUE acs bATTERY cOVER

ACS

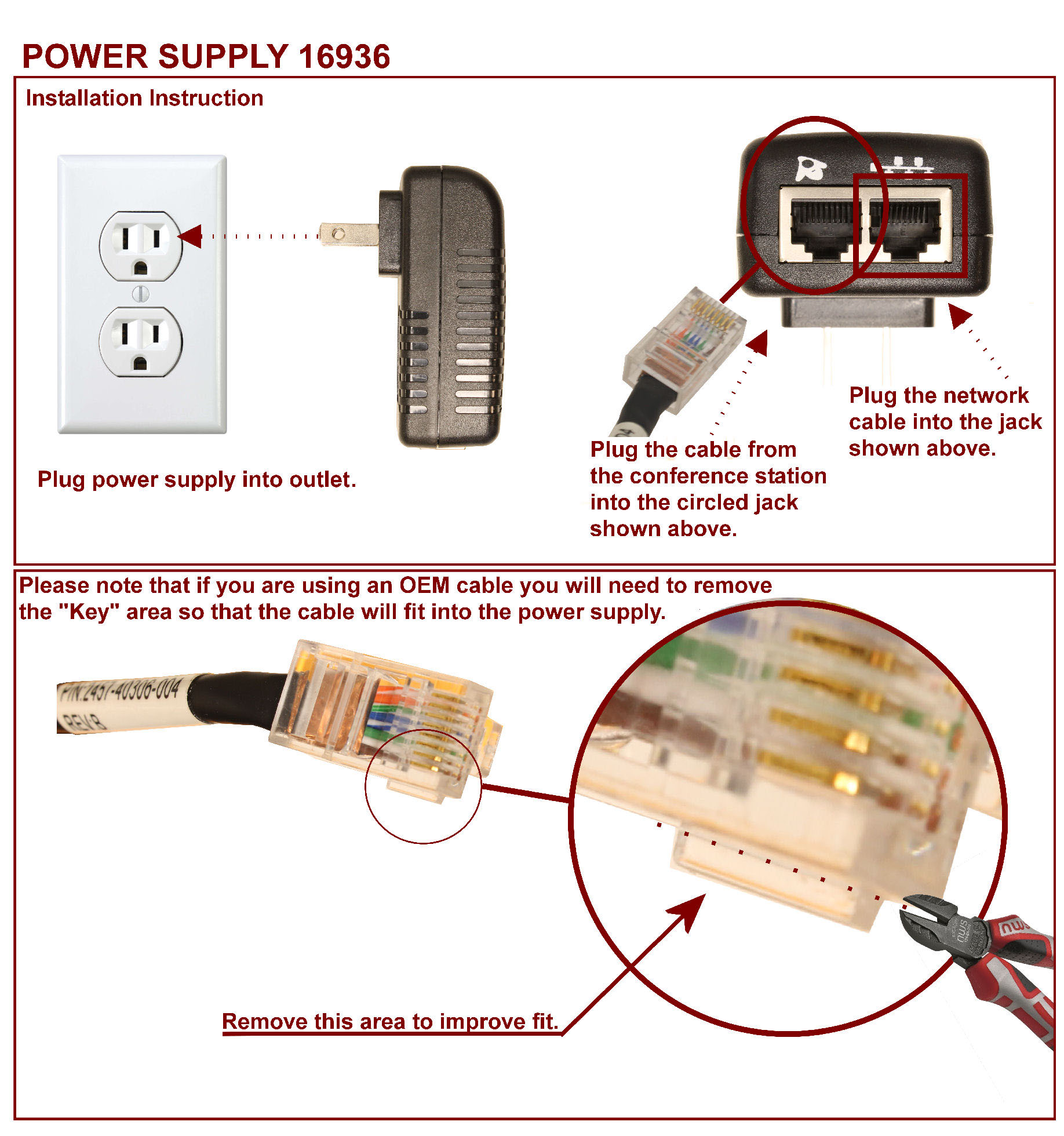

How to install the new Cisco Conference Phone wall Transformer

Wall Transformer


Plug it in correctly

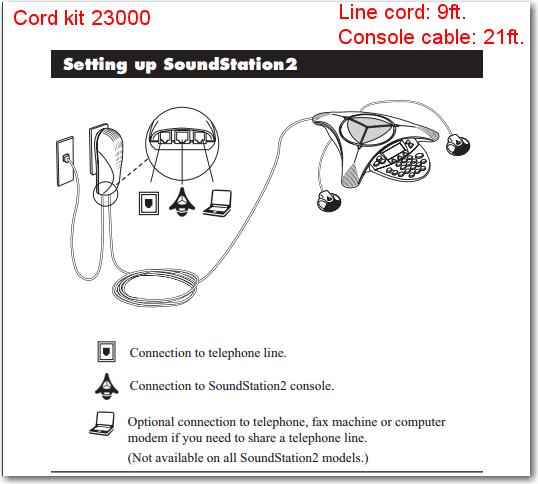

How to Install Cord Kit 23000 for Soundstation 2

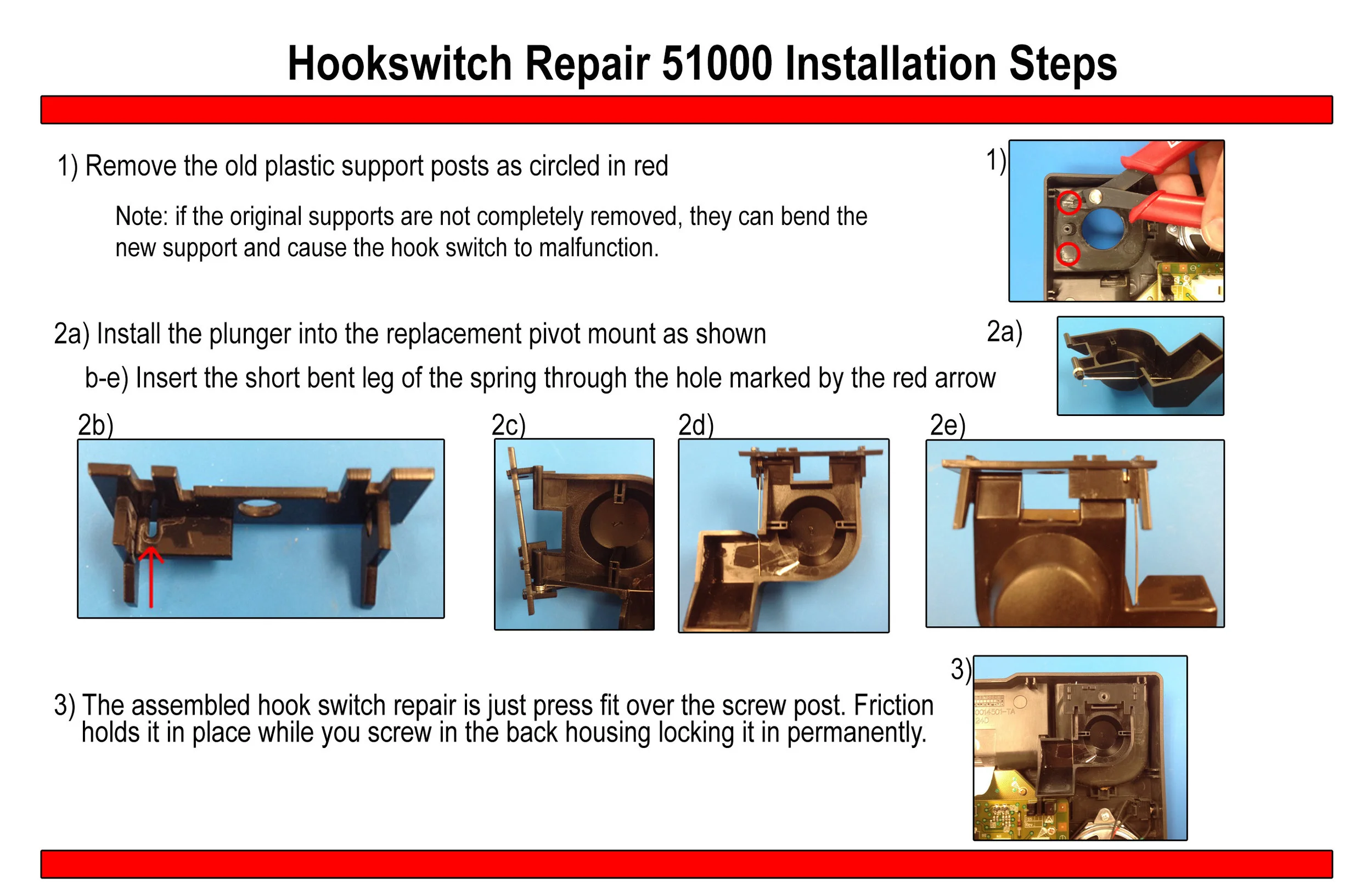

How To Fix Your Vodavi STS 3515 Hookswitch Using our item:

Fix my STS!


Do it right the first time!


How to Identify Which Avaya Euro Series Phone You Have

ID That Phone



Avaya's Euro Series 1 phones have a distinctive handset (circled in blue). We call this "dog bone" or "bow tie" style. The display case (circled in red) is black. Only the lens is silver. The line buttons on this phone series are rectangular (circled in yellow).

                                 Avaya Euro 18D Series 1

                                 Avaya Euro 18D Series 1


           Avaya Euro 18D Series 2

           Avaya Euro 18D Series 2

Avaya's Euro Series 2 has a more rounded handset shape (circled in blue) and it has a slightly raised section on the upper cup. The entire lcd case is sliver to match the lens. (Circled in red) and the line buttons are oval shaped (circled in yellow).


Now that I know I have an Avaya Euro series 1 phone how do I know if it is "Old Style" or "New Style"

Old or New

The bad news is that there is no easy way to know from the outside of the phone. The good news is that if you can open the LCD case, all will be revealed!

Take a look at the LCD CASE of the Avaya Euro Series 1 "Old Style" phone

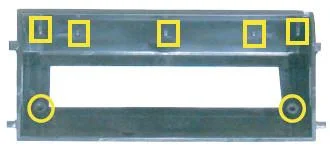

There are 5 support posts These are marked with yellow squares. The screw posts are located near the lens opening, marked with yellow circles.

There are 5 support posts These are marked with yellow squares. The screw posts are located near the lens opening, marked with yellow circles.

The module has a green circuit board with a white ribbon cable.

The module has a green circuit board with a white ribbon cable.


This is what you will see if you have the Avaya Euro Series 1 "New Style" Phones

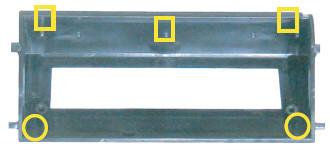

This style case has only 3 support posts and the screw posts are at the bottom edge of the case housing.

This style case has only 3 support posts and the screw posts are at the bottom edge of the case housing.

"New Style" phones have this brown cabled LCD module mounted on a white back light carrier.

"New Style" phones have this brown cabled LCD module mounted on a white back light carrier.

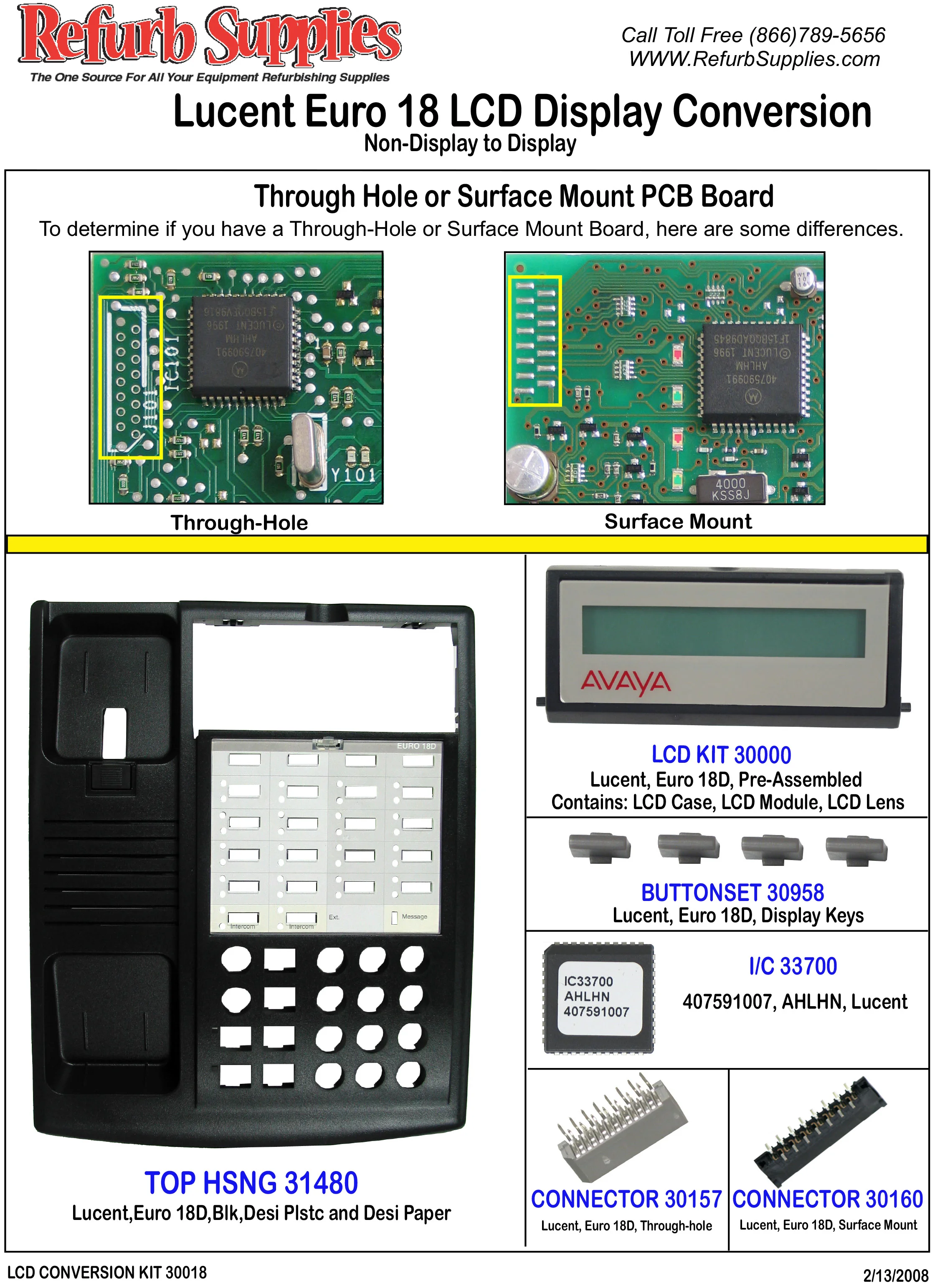

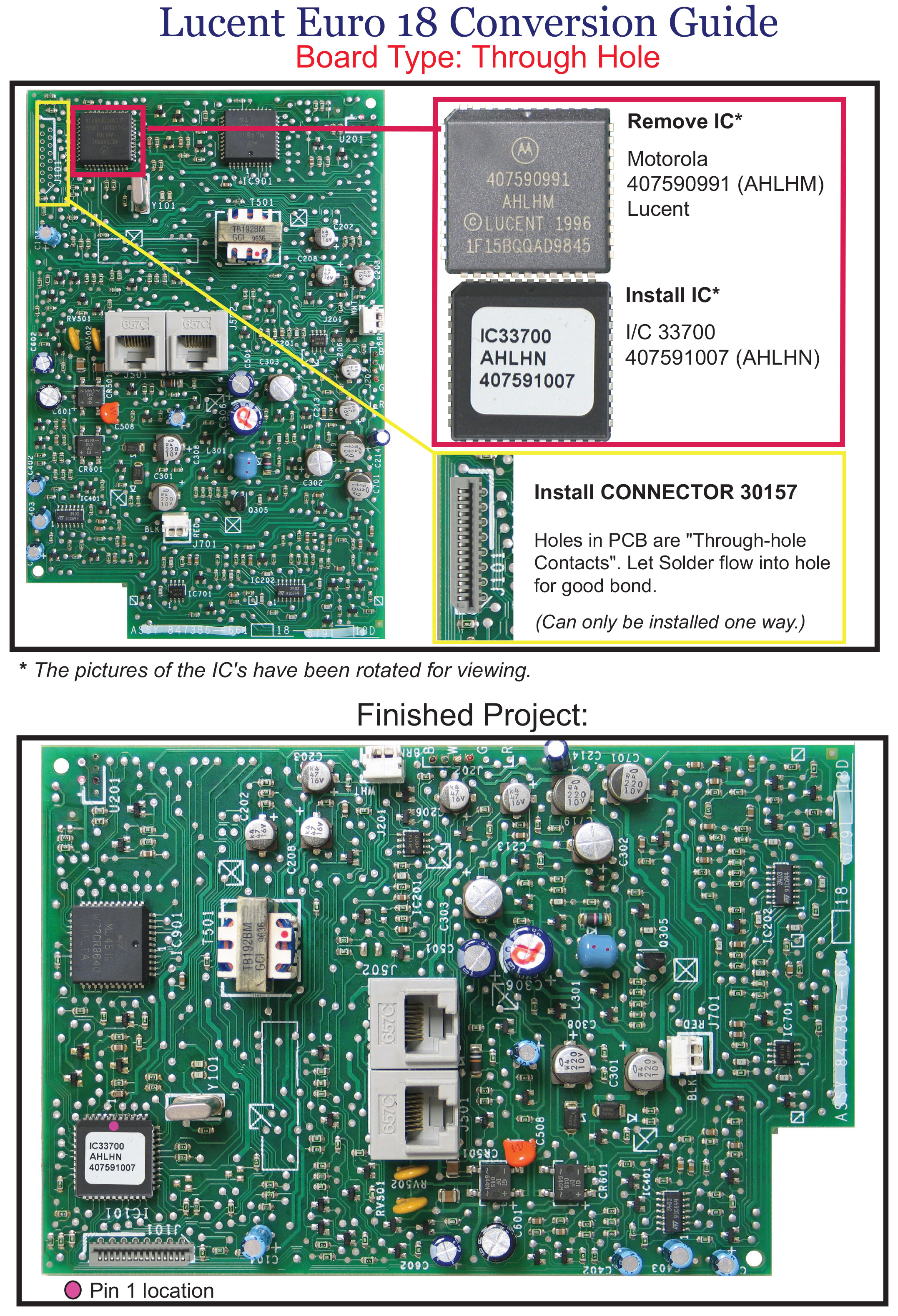

How to Convert Your Avaya Euro Series 1 Non-display Phone to Display

Convert

Follow this guide to convert your non-display phone to display. You will need to determine if you have a through-hole or surface mount board. This will determine which LCD connector you will need.
